Industrial Positioning & Identification Sensors
Sensors designed for positioning and identification of machines operating in harsh coke plant environments.
Designed to operate reliably in harsh coke plant environments including heat, dust, vibration and heavy industrial conditions.
Magnetic positioning technology combined with RFID identification ensures precise machine positioning with accuracy up to ±3 mm.
Designed for integration with PLC control systems used in coke oven machines and heavy industrial automation.
Industrial-grade sensors designed for continuous operation in demanding steel plant environments.
VEROLINE® PI provides precise positioning and identification for coke oven charging machines, coke guide machines and pushing machines.

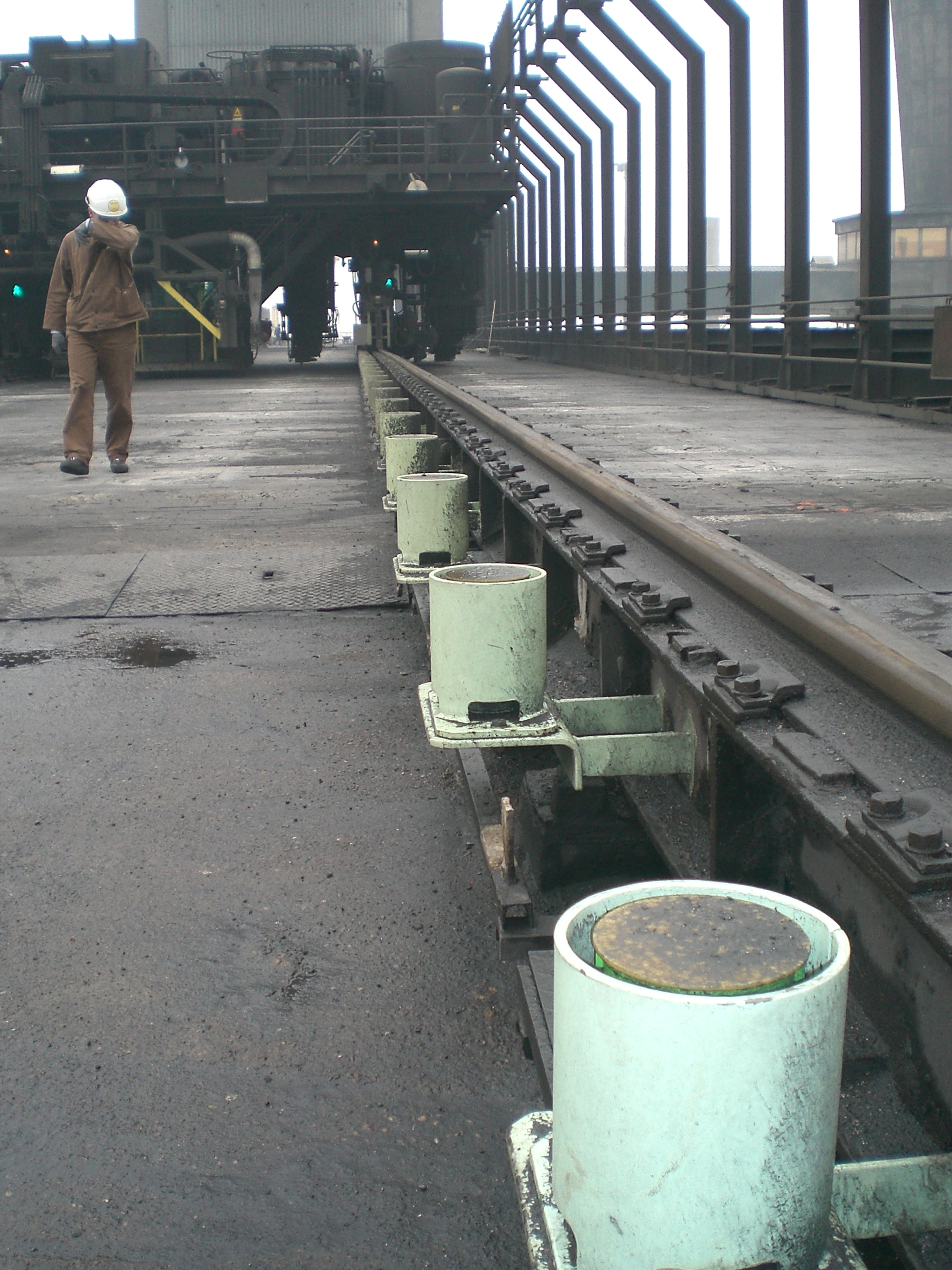

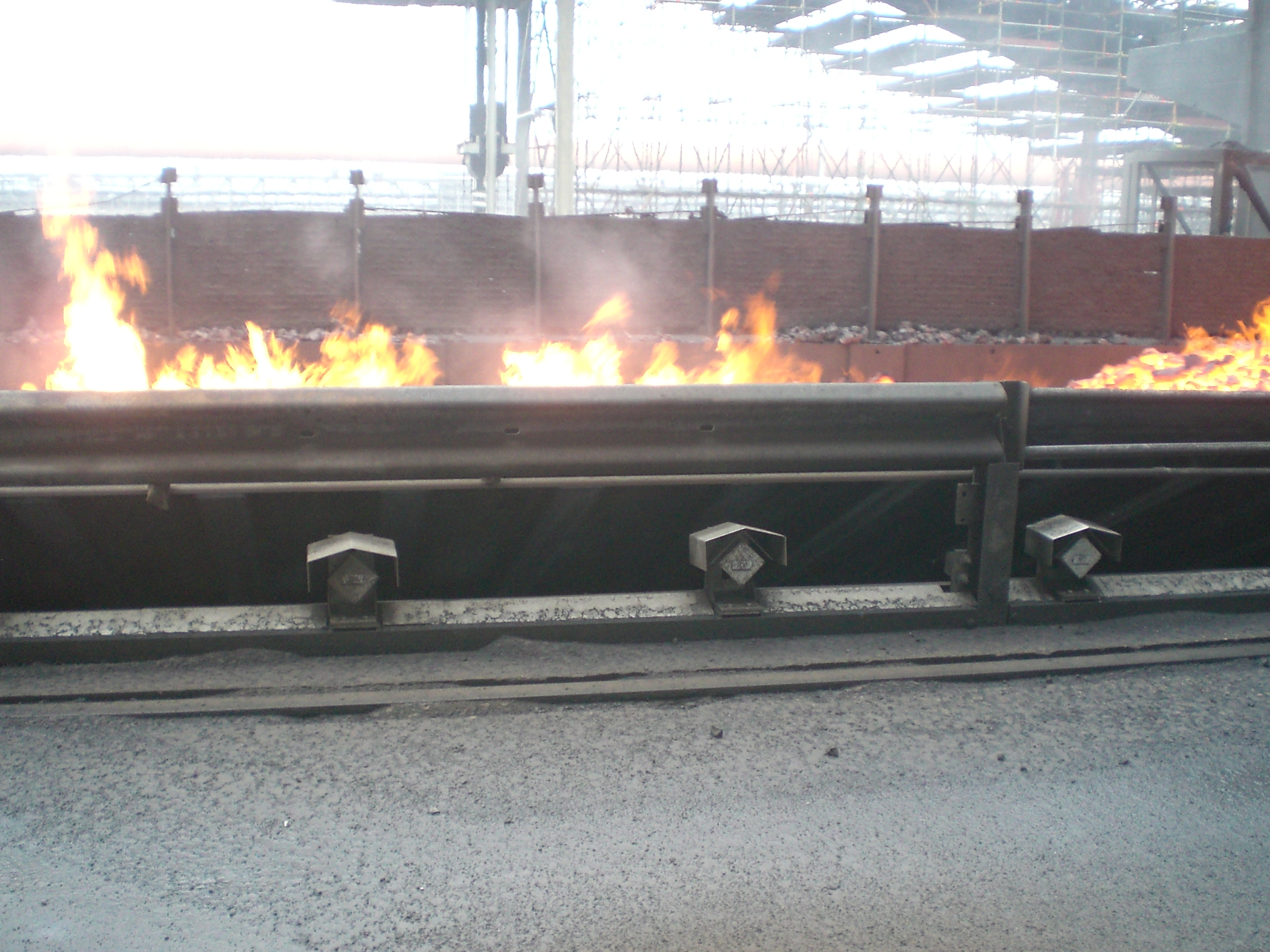

Example of P-type tag head used for positioning and identification of a coke guide machine. Tags are installed along the track close to the passage of the locomotive machine.

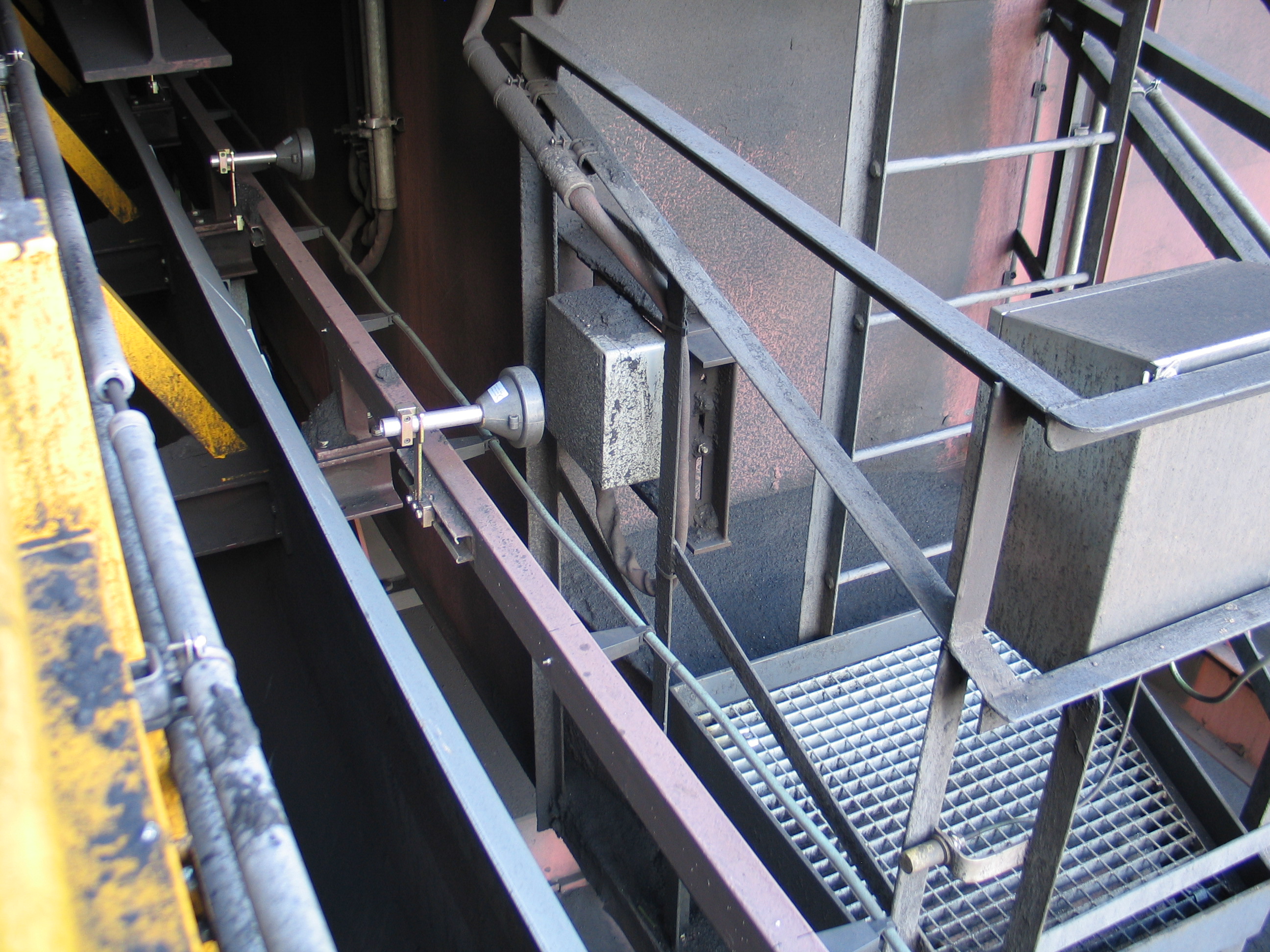

Example of installation on the charging track used for positioning and identification of the coke oven charging machine.

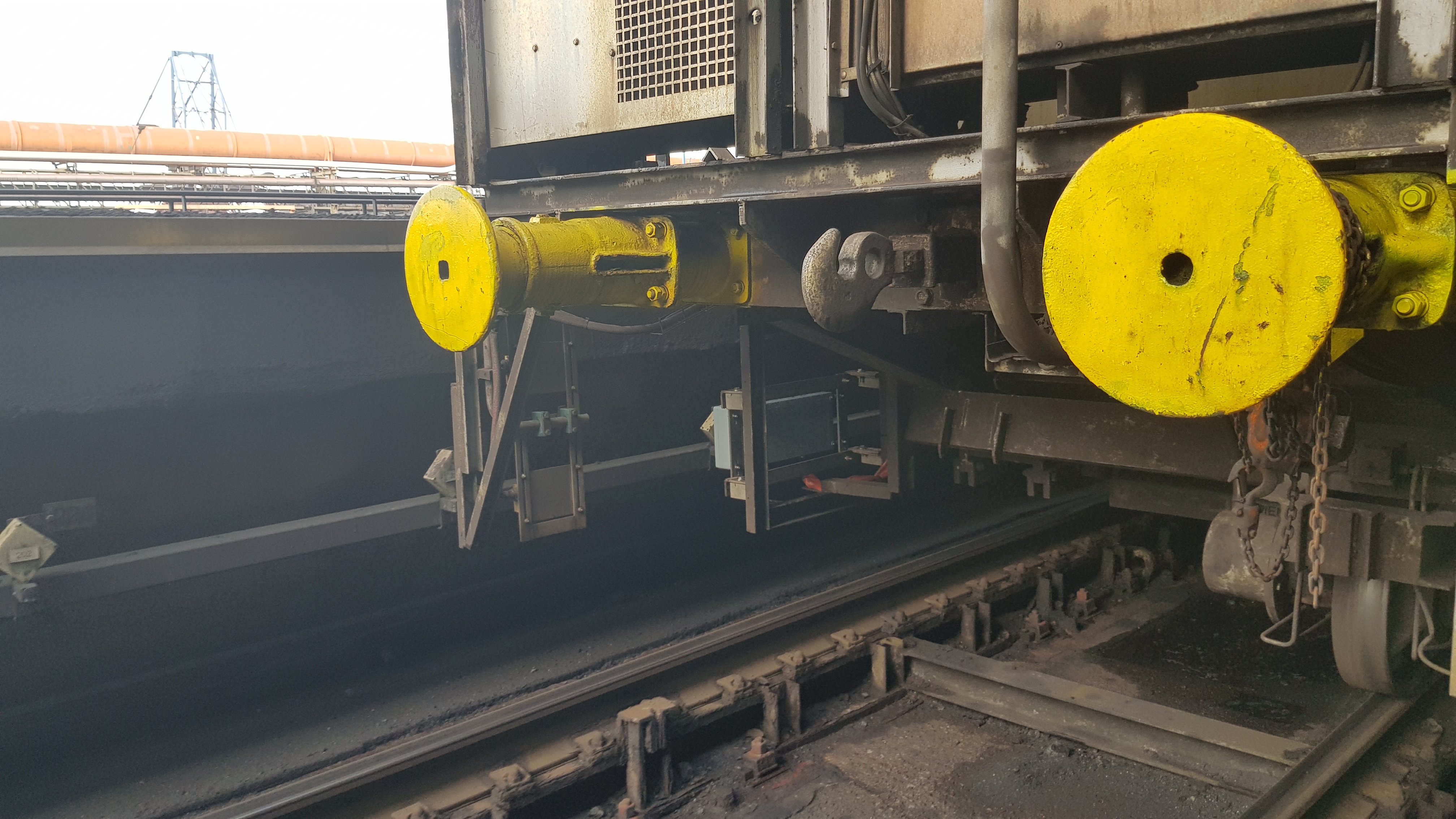

Example of a VEROLINE PI sensor positioning a pushing machine using PI targets installed along the track.

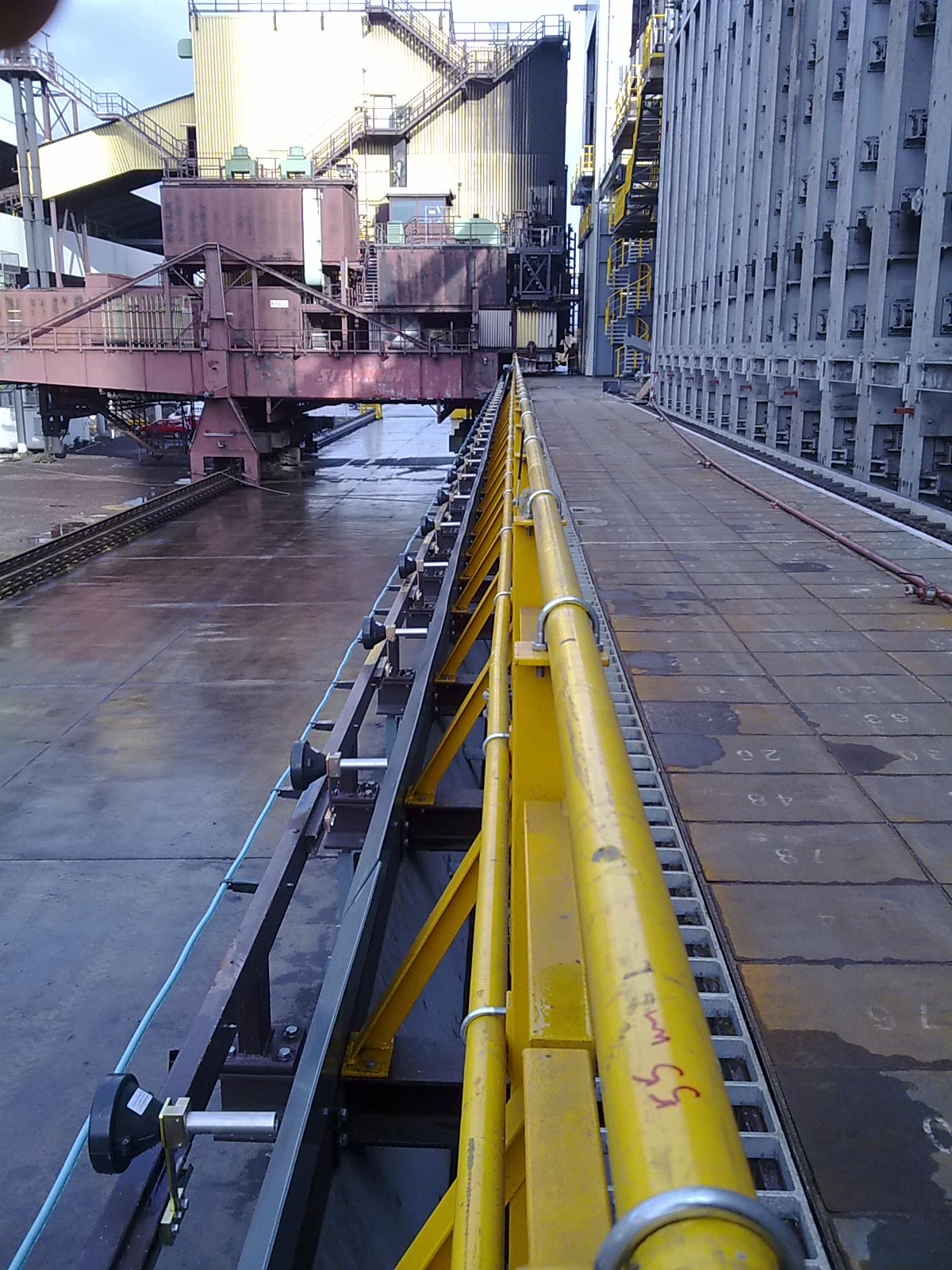

Example of PI targets aligned along the pushing machine track ensuring precise machine positioning.

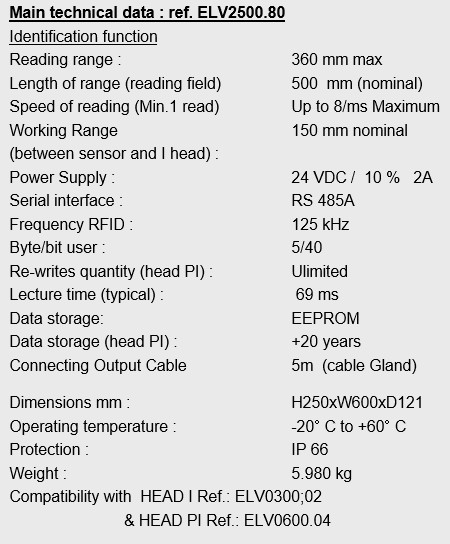

VEROLINE® I sensors are designed for identification, localization and synchronization of locomotive machines and quench cars operating in coke plants.

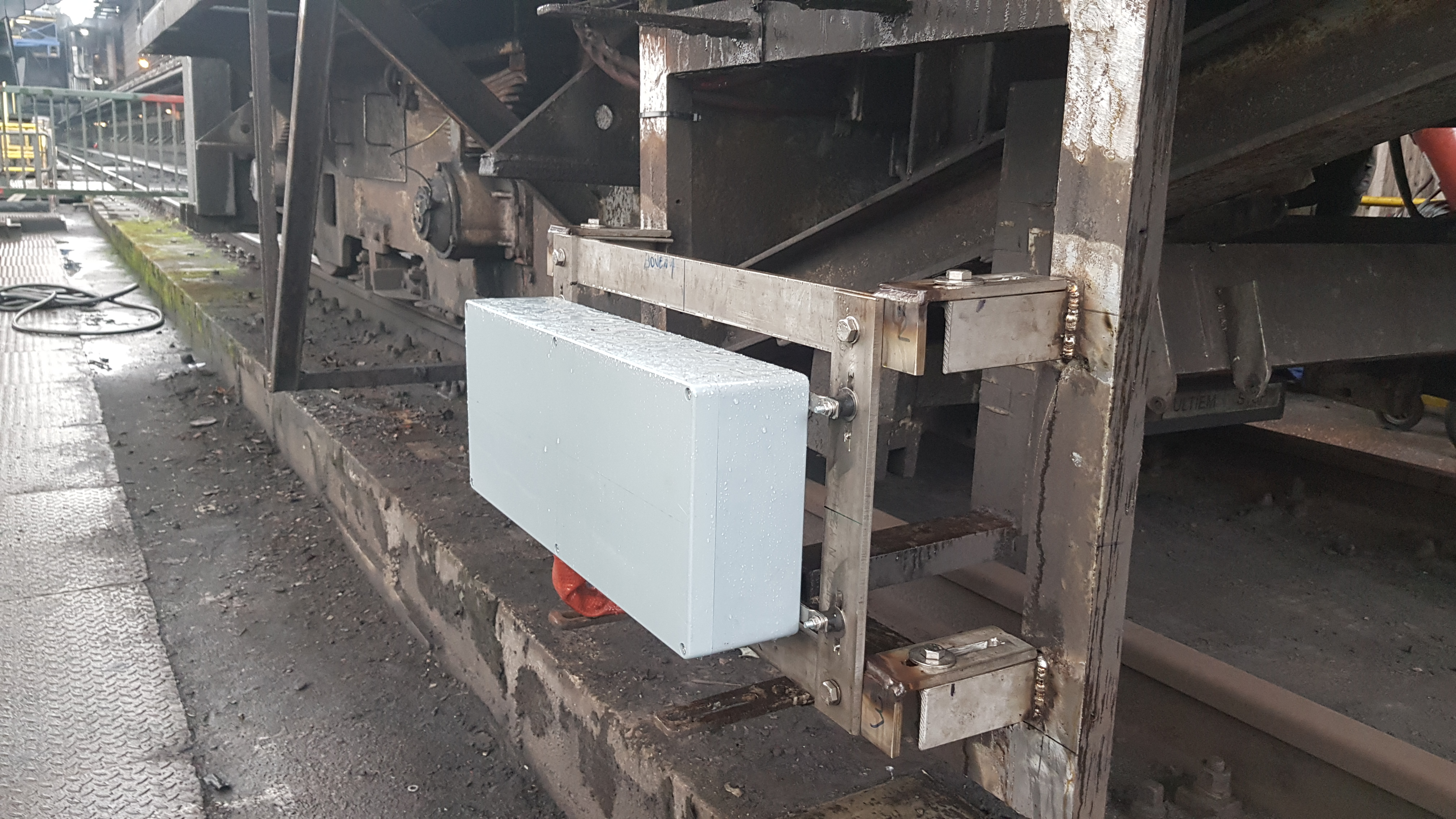

Example of VEROLINE I installation used for locomotive machine identification and synchronization in coke plant rail systems.
RFID identification targets installed along the rail allow reliable identification and localization of locomotives and quench cars.
